Hybrid V
The Hybrid V comes with a Standard Accessory Package. If you are looking for additional or custom accessories, please choose from the options below.

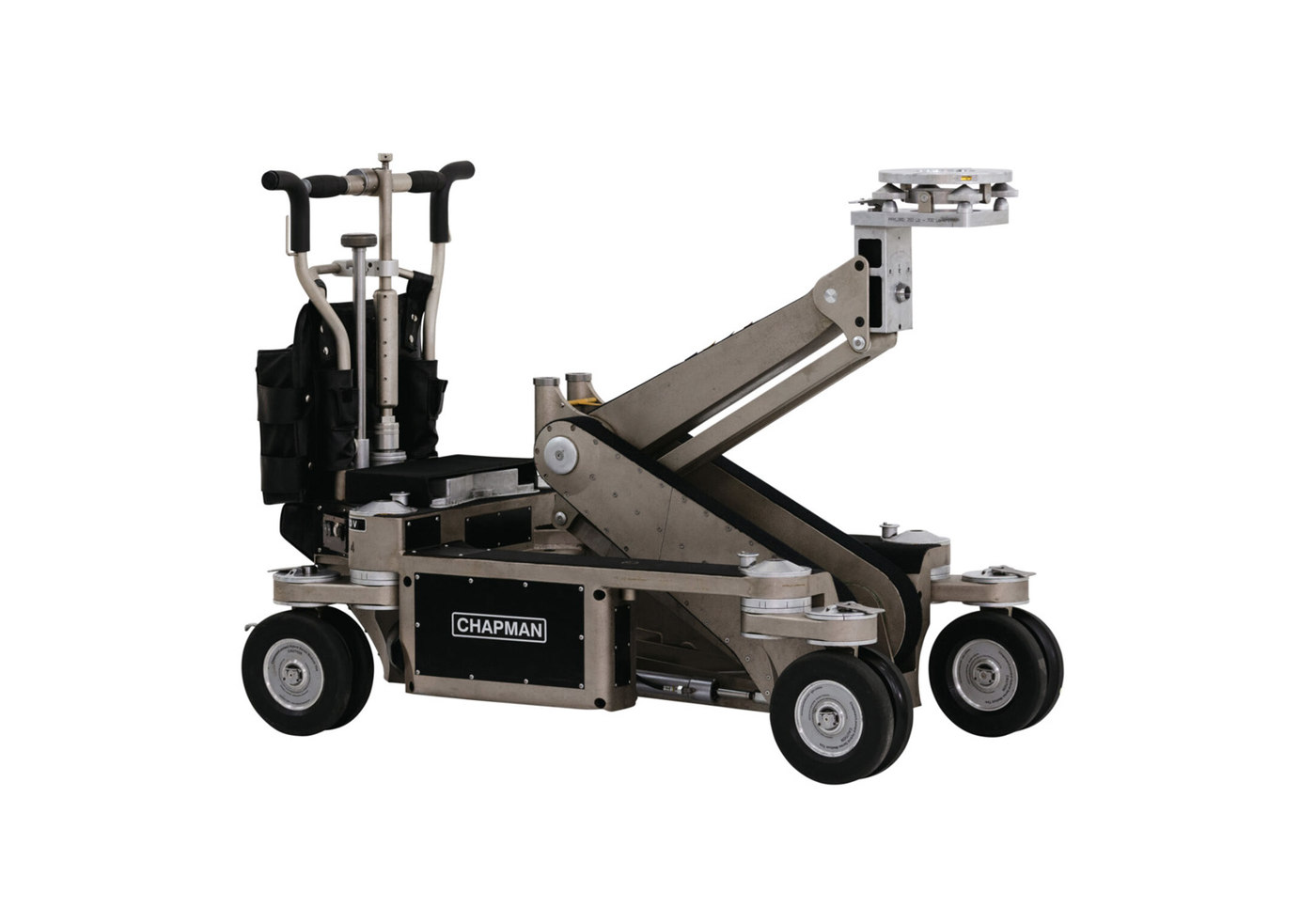

The Chapman Leonard Hybrid V Series dolly offers a range of features and accessories for the dolly grip. The Hybrid V is equipped with a lithium battery for reliable and uninterrupted power. With USB and XLR ports, these dollies are designed to be versatile in supplying power in a variety of applications. An integrated heater powered by the lithium battery ensures consistent boom performance in the coldest environments, while the boom lift capacity has only been improved with further engineering. Chapman Leonard has over 75 years of experience manufacturing in the USA, these dollies are guaranteed to provide the highest quality of service and reliability.
Features of the 5 Series Line
Three-mode steering transmission with conventional, crab, and round steering, which allows shifting to be done through the steering column.
Larger hydraulic capacity that requires less recharging & can handle higher payloads.
The Five Series arm provides greater operator clearance, a valve concept for easy control and greater speed with added precision, and a stop valve requiring no tools for adjustments.
The lightweight aluminum sideboard system provides complete walk around ability at both the high and low levels. The 5 series arm allows for lower camera setups.
The five series lineup offers additional accessories such as an off-road wheel accessory for transport over rough terrain. The 5 series will work on both straight and curved 24 1/2 tubular track or 880 MM track.
Accessory cart included in all standard packages.
Product Downloads Coming Soon
Please view below for the equipment that is included as standard with a Hybrid V rental. Need more accessories? Check out our Full Package, or build your own Custom Package.
STEERING COLUMN W/CLUTCH, 4/5
UNIVERSAL STOP VALVE,HYB 2-5
HEATING SYSTEM, HYB 3-5
VALVE CNTRL HANDLE,HYBRID 4/5
REINFORCE GQ LEVEL HD W/CLUTCH
LEFT SIDE STRUT, HYB 3+/4/5
RIGHT SIDE STRUT, HYB 3+/4/5
CASTLE RING, GQ LEVEL HEAD
CASTLE RING WRENCH, HYB GQ HD
WRENCH, HYBRID 4/5
QUICK TIRE CHANGE CLIP/SET(8)
MEDIUM TIRE, HYB-HYB 5 SET (8)
DOLLY SEAT W/ LOCKING PIN
LOCKING SWIVEL SEAT,W/LOCK PIN
12" DOLLY SEAT RISER-LONG POST
TRACKING BAR,HYBRID 4/5
END PLUG,TRACKING BAR-OBS
TRACKING BAR EXTENSION,12"
TRACKING BAR BRACKET COMPLETE
GRIP POUCH, HYB 5
LITHIUM BATTERY, 5 SERIES
12" CAMERA RISER
CASTLE RING - MITCHELL
90 DEG HI/LOW PLATE - COMPLETE
90 DEG PLATE,HYB 4/5 HI/LO LVL
QUICK RELEASE PIN,3/16X1 1/4
90 DEG 8" EXTENTION, HYB 4/5
KNOB, 90 DEG HI/LOW PLATE
90 DEG HI/LOW LEV HD, HYB 4/5
KNOB, 90 DEG HI/LOW PLATE
SEAT ADAPTER, 2-15/16"
FRONT BOARD, ADJ, HYB 4/5
QUICK RELEASE PIN,3/16X1 1/4
NARROW SIDEBOARD, RT, HYB 4/5
NARROW SIDEBOARD, LT, HYB 4/5
NARROW HINGE CRNER BRD,HYB 4/5
STANDARD SIDE BOARD, HYB 4/5
CORNER BOARD, HYB 4/5
CORNER SLIDING BOARD CONNECTOR
FILLER BOARD, FRONT, HYB 4/5
FILLER BOARD, REAR, HYB 4/5
SHIN PAD, REAR, HYB 4/5
LIFTING BAR, FRONT, HYB 4/5
LIFT/PUSH BAR, REAR, HYB/HUS
PUSH BAR COLLAR W/KNOB
SILICONE MOLD RELEASE,ZEP-PAR
HYB 4/5 COMPACT ACCESSORY CART
ACCESSORY CART COVER, HYB 4/5
USER GUIDE,HYBRID 4/5
