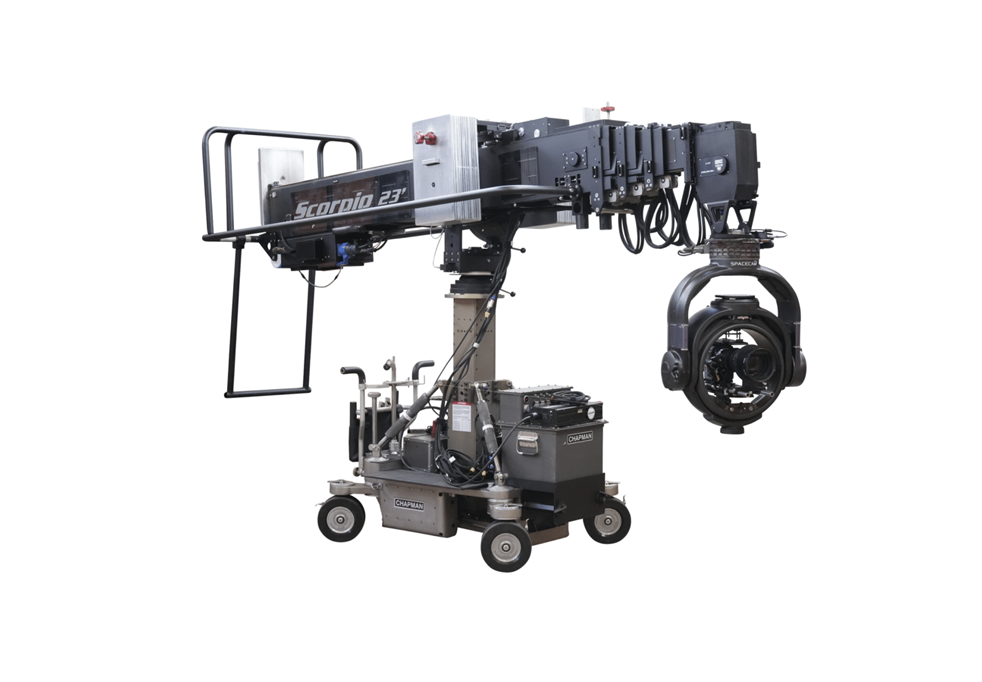

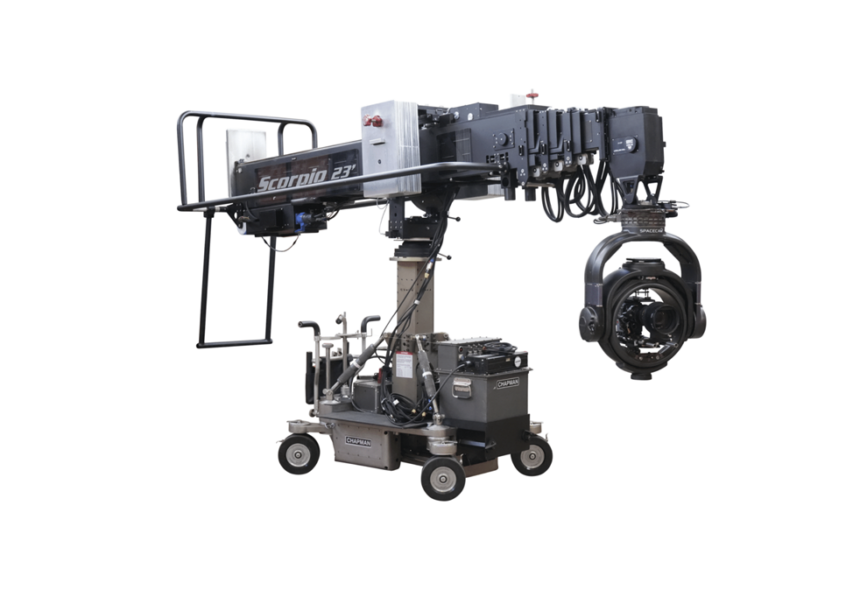

Scorpio 23

The Scorpio 23´ is designed to have soft, silence and effective camera movements true to telescopic arms. It features aluminum arms to increase rigidity and be more uniform. The arms are guided with true wheels in the top and bottom locations to increase stabilization, incorporating two lateral cables.

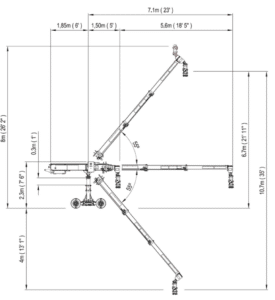

Features Specifications Line Drawings

The Scorpio 23´ is designed to have soft, silence and effective camera movements true to telescopic arms. It features aluminum arms to increase rigidity and be more uniform. The arms are guided with true wheels in the top and bottom locations to increase stabilization, incorporating two lateral cables.

Key Features:

Automatic compensation of the arc generated by the movement of the arm both horizontally and vertically.

Programmable limits in the telescopic movement of the arm.

Movement generator of the telescopic arm in relation to the horizontal or vertical movement of said arm.

Adjustable arm speed and dampening reported on the screen.

Allows Under-slung and Over-slung mounting of the head.

Arm length, vertical and horizontal angle, and optical axis elevation information, in meters and feet, on screen.

Programmable sequential stops.
Tilt, Pan and Arm encoder reading for Motion Capture jobs.

Smooth arm movement in both high and low speed.

Sound reduction system in the movement of the telescopic arms.

30 cm mechanical column lift.

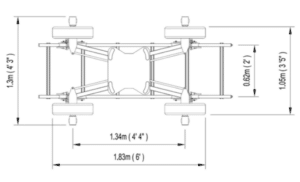

3 positions of adjustable trolley width with articulated arms:
Traveling wheels: Adjustable to all standard track widths: 62 cm/24.40'' and 100 cm/39.37''.
Pneumatic wheels: Adjustable width from 73.5 cm / 28.93’’ to 144 cm / 56.69’’.

Full Extension
23’6”
Full Retraction
4’7”
Travel Length
18’4”
Rear Length
6’8”
Max Speed
5’10” per sec
Max Nose Load Under Slung With Leveling Nose
150 lbs
Max Nose Load With Orbiter Nose
177 LBS
Max Load Over Slung With Leveling Nose
99 lbs.
Ultra HyHy Base - Max Height to Mitchell Over Slung
25’4”
Ultra HyHy Base - Max Height to Mitchell Under Slung
23’
Raptor Base - Max Height to Mitchell Over Slung
27’4”
Raptor Base - Max Height to Mitchell Under Slung
25’
Scorpio Base - Max Height to Mitchell Over Slung
24'3"
Scorpio Base - Max Height to Mitchell Under Slung
21’11”
Ultra HyHy Base - Crane Weight with M7 and standard camera package
2,423 LBS
Raptor Base - Crane Weight with M7 and standard camera package
4,150 LBS
Scorpio Base - Crane Weight with M7 and standard camera package
2,291 LBS
Weight of Stripped Arm
1,323 LBS
