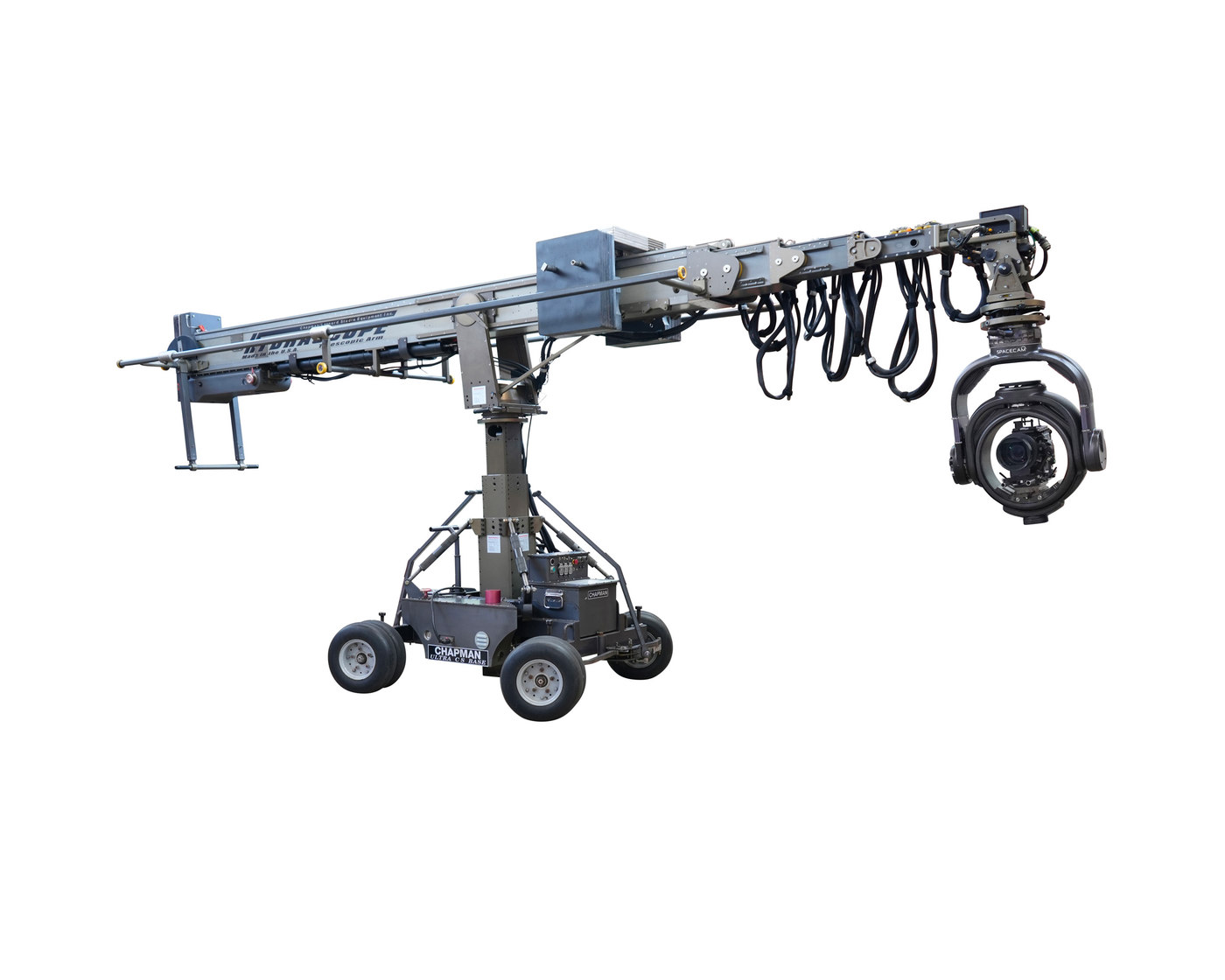

Hydrascope 40

Chapman Leonard is proud to be the manufacturer of the Hydrascope telescopic crane, which is manufactured in the USA at our facility. The Hydrascope is operated by a hydraulic system, providing smooth and fluid movements. The Hydrascope is also waterproof, meaning it can be used for a variety of applications from rain scenes, water submersion, and weathers well in harsh and dusty conditions.

Product Overview and Key Features Specifications Downloads

Chapman Leonard is proud to be the manufacturer of the Hydrascope telescopic crane, which is manufactured in the USA at our facility. The Hydrascope is operated by a hydraulic system, providing smooth and fluid movements. The Hydrascope is also waterproof, meaning it can be used for a variety of applications from rain scenes, water submersion, and weathers well in harsh and dusty conditions. The unique Hydrascope feature is the rotary handset, designed to give the same booming operation feel as a dolly. These features make the Hydrascope a great choice for filmmakers who need a reliable and efficient crane, that can handle the harshest location. Sizes include 70', 50', 40', 32', 20', and 15’. The Hydrascopes are all capable of heavy cameras and head payloads. The nose allows for quick over to under-slung rotation in seconds. The Hydrascope is a strong and reliable telescopic crane that is suitable for use in any type of environment.

Hydrascope 40 Key Features

  • Waterproof Telescoping Crane System
  • Heavy Duty Construction for use on Land and Underwater
  • Quick Easy Setup
  • 360 Degree Rotation
  • 30 volt DC Chapman or Lithium Battery Included
  • AC/DC Converter included
  • Telescoping operation by your choice of thumb (aka pickle) or removable hand control valve
  • Can be used with your choice of remote head up to 250 lb total payload
  • Accepts standard Mitchell Mount for both Remote Head and Base
  • Works with your choice of ECS Base, Olympian III or Mav 52 each featuring Telescoping, Auto Leveling Center Post for easy mounting and unmounting as well as making transport on set efficient and quick
  • Two or Three Trained Technicians Dispatched with Every Unit
  • ECS Base works on track
  • Comes enclosed in a Chapman/Leonard truck or enclosed trailer for storage
  • Fits Through a Most Doorways when mounted on ECS Base or Olympian III
  • ECS Base features an hydraulic center post, with 55in of vertical travel
  • ECS Base fits through 52in Doorway
Full extension
40’
Travel length
32’
Fully retracted
8’
Rear length
9’2”
Max speed
7’ per sec
Max nose load under slung w/ leveling nose
160 LBS
Max nose load w/ orbiter nose
160 LBS / M7 evo required
Max load over slung w/ leveling nose
160 LBS
Max load under slung w/ leveling nose
160 LBS
Max Height to Mitchell over slung, on UCS base posted up
44'9"
Max Height to Mitchell under slung, on UCS base posted up
42’9”
Max Height to Mitchel over slung, on Raptor posted up
42’5”
Max Height to Mitchell under slung, on Raptor posted up
40’5”
Crane Weight with UCS base, M7 and standard camera package
4900 LBS
Crane Weight with Raptor, M7 and standard camera package
6,300 LBS
Weight of Stripped Arm
1,600 LBS

Downloads Coming Soon
