HYDRACAR

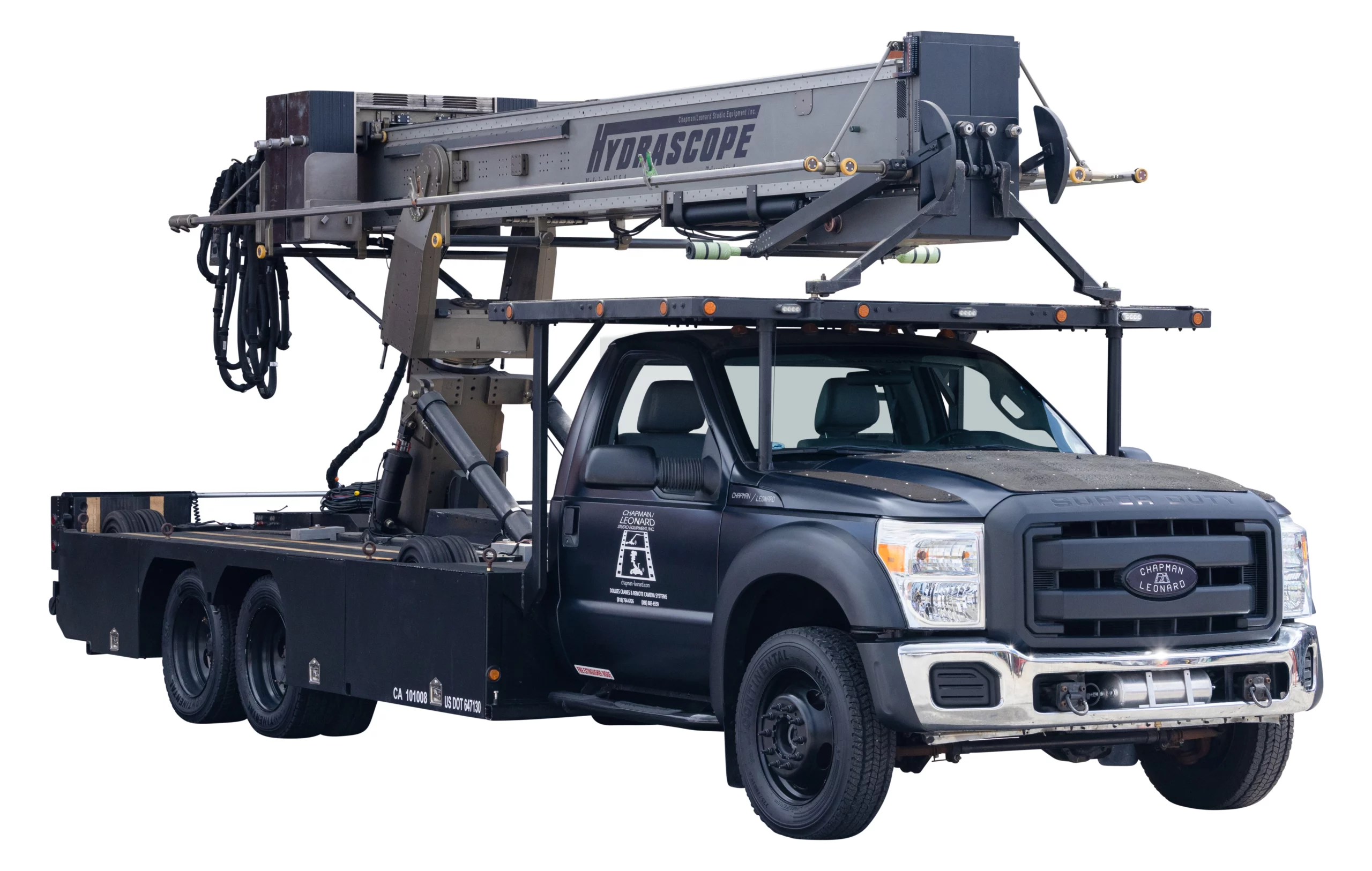

The Chapman/Leonard HydraCar can be used as a camera car to work and transport the 73′ Hydrascope. The HydraCar is a 3 Axel registered road vehicle that runs on gasoline.
Specifications
Features
Downloads (Coming Soon)
Camera Car Rear Lower Deck Height from Ground
21 in. / 53.34 cm
Camera Car Rear Lower Deck Length (Depth)
36 in. / 91 cm
Camera Car Rear Lower Deck Width
8 ft. 4 in. / 2.54 m
Camera Car Main Deck Length (Depth)
16 ft. 5 in. / 5.03 m
Camera Car Main Deck Width
8 ft. 4 in. / 2.54 m
Camera Car Main Deck Height from Ground
3 ft 4 in. / 86.36 cm
Upper Deck Height from Ground
6 ft. 10 in. / 2.53 m
Upper Deck Length (Depth)
5 ft. 6 in. / 1.68 m
Upper Deck Width
8 ft. 4 in. / 2.54 m
Front Deck Length (Depth)
36 in. / 91 cm
Front Deck Width
7 ft. 4 in. / 2.23 m
Post Mount Height for Telescoping Crane Arm Mount from Ground
5 ft. 8 in. / 1.72 m
Post Mount Height from Deck of Camera Car
34 in. / 86.36 cm
Hydra Car Traveling Overall Width
8 ft. 4 in. / 2.54 m
Hydra Car Traveling Overall Length
27 ft. / 8.23 m
Hydra Car Crawford Generator- Three Phase
350 amp
Hydra Car Crawford Generator- Single Phase
300 amp
Hydra Car Traveling Weight (Without Arm or Base)
19,000 lb / 8,636 kg
Hydra Car Traveling Weight (With Arm and Base)
34,000 lb / 15,422 kg
Hydra Car can be used as a camera car to work and transport the 73' Hydrascope
Hydra Car is a 3 Axel registered road vehicle that runs on gasoline
Hydra Base fits easily on the bed of the Hydra Car and can be used both on and off the Hydra Car
Hydra Car Incorporates a self leveling, telescoping center post that can tilt forward and back
The all wheel Hydra Car has a Tow HItch
Comes with a 350 Amp, 3 Phase or 300 Amp Single Phase, Crawford Generator with Cam Locks
A Fully Trained Camera Car Driver Is Assigned To Every Order
The Hydra Car Comes With A Variety Of Packages Built To Suit You Production Needs
