Scorpio 17

The Scorpio 17’ is a three section light telescopic crane for payloads until 60Kg in under slung and 40Kg in over slung, The Scorpio 17´ was designed as a longer version of the Scorpio 10´,to provide to film market the best crane for car shootings or interior sets.

Features Specifications Scorpio 17 Downloads

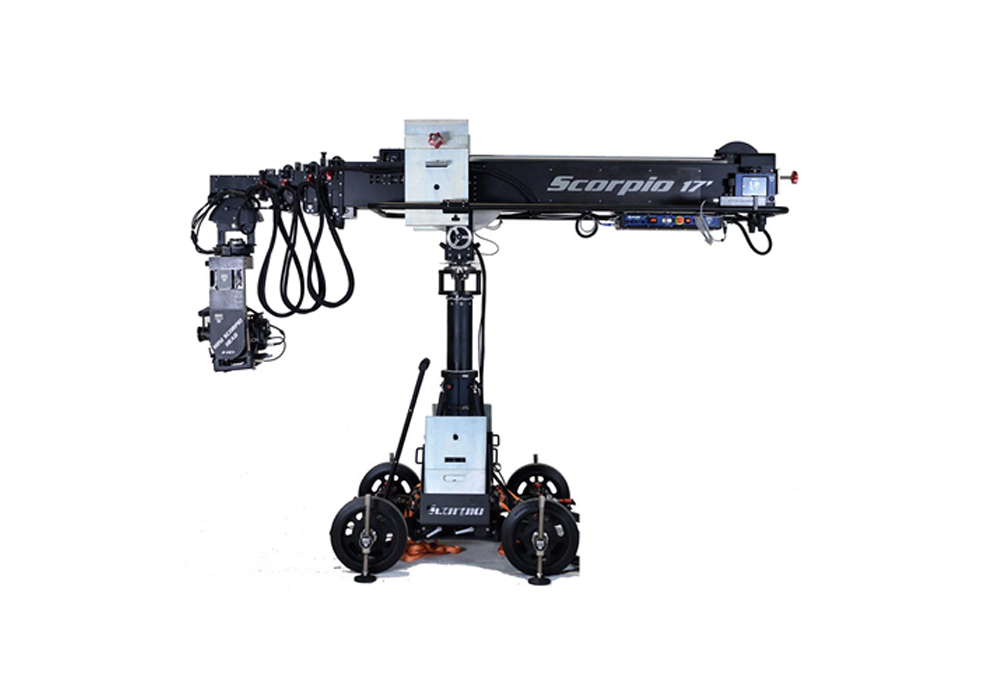

The NEW Scorpio 17’ is a three section light telescopic crane for payloads until 60Kg in under slung and 40Kg in over slung.

Servicevision has designed the Scorpio 17´ as a longer version of the Scorpio 10´to provide to film market the best crane for car shootings or interior sets.

The Scorpio 17’ has a dolly/base with articulated arms that allows to change its width for standard dolly tracks of 62cm and for 40cm Scorpio tracks, it also allows a very small and compact configuration for taxiing to go through standard office door way (80cm)… place your Scorpio 17´everywhere needed.

It also has a telescopic column that risers-up an extra 36cm.

Maximum Length
17'5"
Minimum Length
3"05"
Back Length of the Arm
5'7"
Telescopic Range
13'3"
Loading Capacity in Under-Slung
132 LBS
Loading Capacity in Under-Slung
88 LBS
Required Power
DC 30 / 40 A
