Scorpio 38
The Scorpio 38’ is the natural evolution of the Scorpio 30’ + 7’. With 4 telescopic sections, this crane allows 70 kg as a maximum payload keeping a perfect rigidity in its maximum extension. The new Electronic Box has a removable touch-panel display giving the possibility to the crane operator to place it as per his convenience. This gives the operator full access, visual the control and parameters and not being disturbed by the counterweights movement for instance.
Product Overview and Key Features
Specifications
Downloads
Scorpio 38 Features:
- Programmable limits on the telescopic movement of the arm
- Programmable movements of the telescopic arm
- Motion Generator of the telescopic arm respect to Pan or Tilt
- Data displayed on screen: arm range, height of the optic axis and Pan and Tilt angles
- Arm speed and Damping adjustable and displayed on the screen
- Programmable Stop Sequence
- Pan, Tilt and Arm encoder output for Motion Capture jobs
- 4 telescopic sections plus Central Arm
- Smooth movement in high and slow speed
- Noise reduction system of the telescopic arm movement
- The head can be mounted Underslung or Overslung
- Dynamic counterweight system
- Adjustable fluid in Pan and Tilt
- 55º inclination on the Tilt arm
- 2 telescopic column to higher 2 position
- Selectable width of the articulated legs with lockable position
All Specs are to the Mitchell nose mount, excluding addition length and height that will be easily acquired with the M7Evo and Chapman ORBITOR.
Full Extension
38'
Full Retraction
7’6”
Travel Length
30’ 6"
Rear Length
8’6”
Max Speed
6’ per sec
Max Nose Load Under Slung with Leveling Nose
154lbs
Max Nose Load Over Slung With Leveling Nose
99 LBS
Max Nose Load With Orbiter Nose
190 LBS

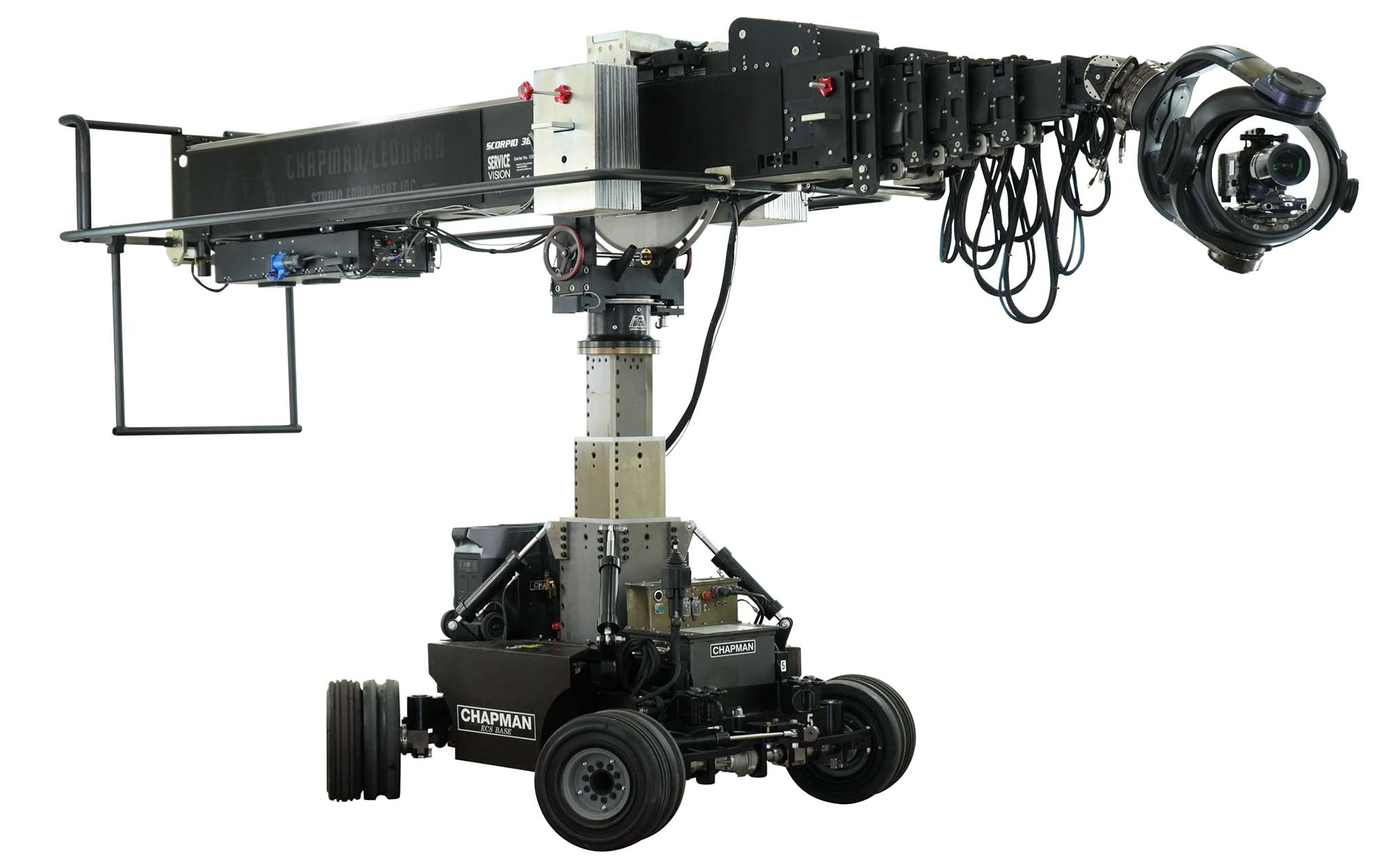

ECS Base - Max Height to Mitchell Over Slung
44’4”
ECS Base - Max Height to Mitchell Under Slung
42'

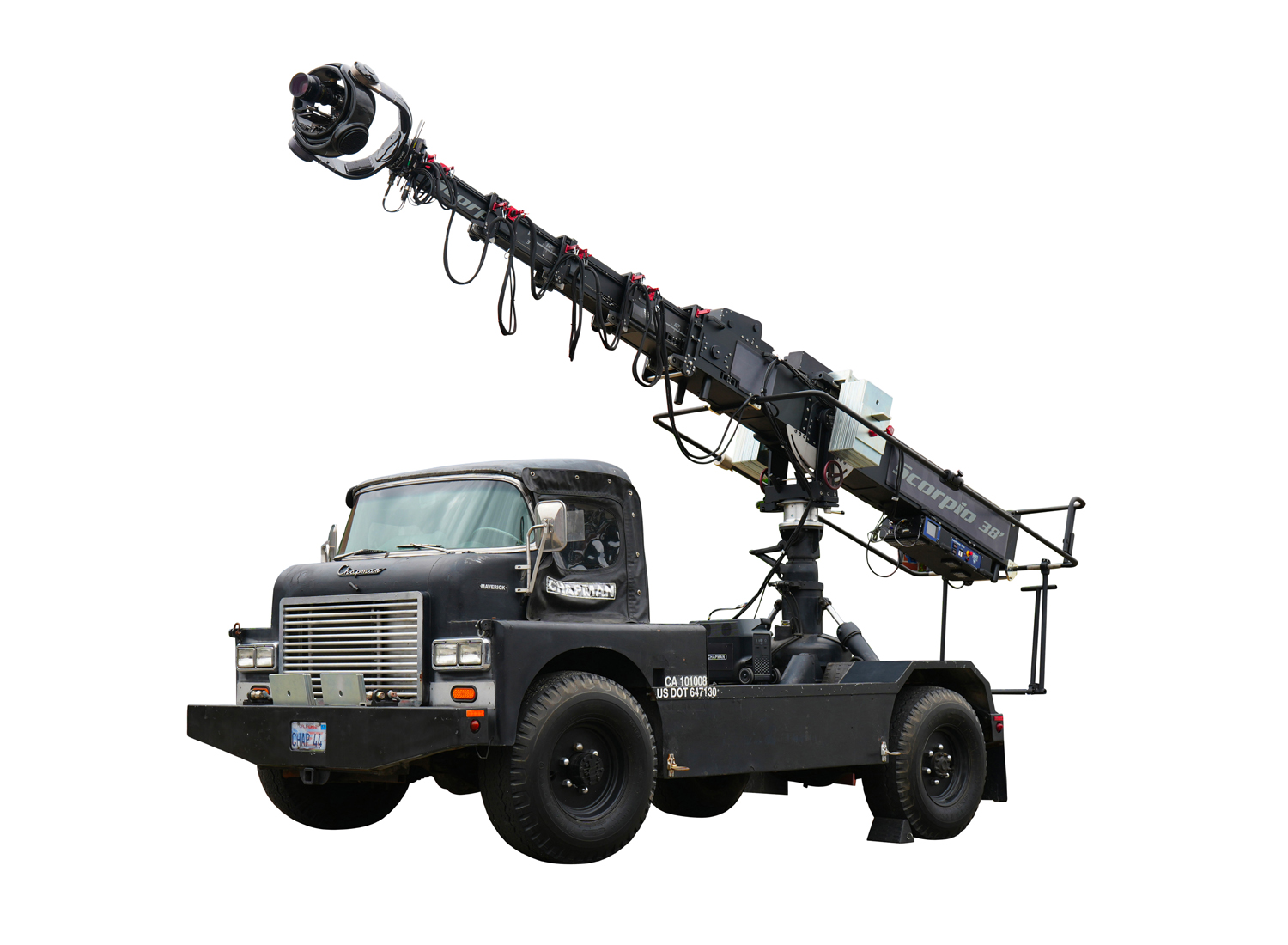

Mini Mav Base - Max Height to Mitchell Over Slung
44'7"
Mini Mav Base - Max Height to Mitchell Under Slung
42'3"
Olympian III Base - Max Height to Mitchell Under Slung
39'6"
Olympian III Base - Max Height to Mitchell Over Slung
41'10"
ECS Base - Crane Weight with M7 and standard camera package
5,740 LBS
Mini Mav Base - Crane Weight with M7 and standard camera package
16,360 LBS
Olympian III Base - Crane Weight with M7 and Standard Camera Package
6,435
Weight of Stripped Arm
2,900 LBS
