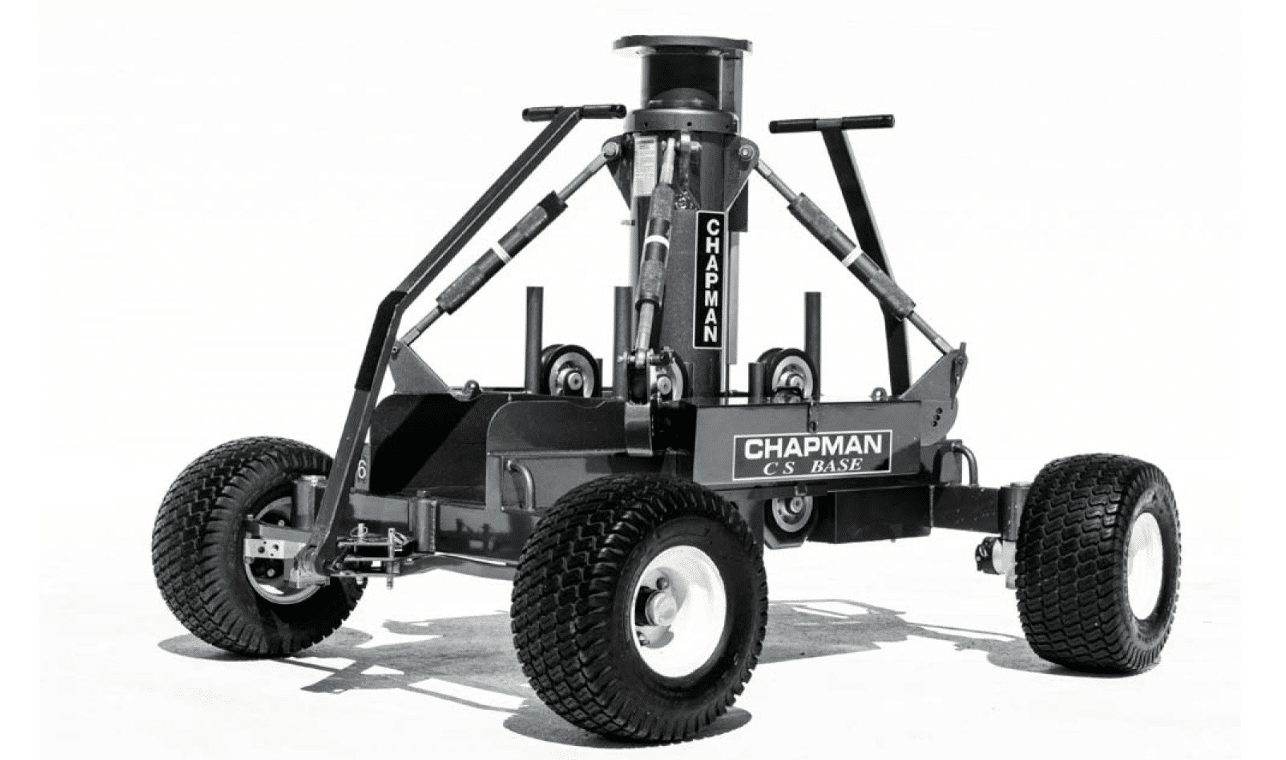

Super CS Base

Name: Super CS Base
SKU: 4250

The Super CS Base has a center post that provides a lower center of gravity for easier mounting of crane arms, quick, simple leveling system, accommodates lenny arms for manned or remote applications. removable center post, tool box for storage, patented screw jack system for easy leveling of chassis, can be used on 880mm track.

Specifications Features Downloads (Coming Soon)

Choose a tab

Minimum Post Mount Height (Mitchell 100)

4 ft. 2.25 in. / 1.28 m

Maximum Post Mount Height (Mitchell 100)

5 ft. 4 in. / 1.63 m

Travel of Hydraulic Center Post

13.75 in. / 35 cm

Maximum Payload*

5,500 lb / 2,495 kg

Minimum Chassis Height (without Center Post)

31 in / 79 cm

Chassis Width (Caster Wheel-Track Setup)

3 ft. 3.5 in. / 1 m

Chassis Width (Single Wheel-Knobby Tires Setup)

4 ft. 10 in. / 1.47 m

Chassis Width (Dual Wheel Setup-Pneumatic Tires)

5 ft. 0.5 in. / 1.54 m

Max. Chassis Width (Dual Wheel Setup-Tires without riggers)

5 ft. 9 in. / 1.75 m

Built-In Track Wheel Width (Center to Center)

2 ft. 10.6 in. / 880 mm

Minimum Chassis Length

6 ft. 2.5 in. / 1.89 m

Maximum Chassis Length (with Outriggers)

6 ft. 8 in. / 2.03 m

Minimum Carrying Weight of Chassis

302 lb / 137 kg

Standard Operational Unit Wt. (without Payload) (without Outriggers)

773 lb / 351 kg

Standard Operational Unit Wt. (without Payload) (with Outriggers)

983 lb / 446 kg

*Payload includes All Items (i.e. Man, Camera, Platform, Turret, Crane Arm, etc.) on Base Mount.

Center Post Provides a Lower Center of Gravity for Easier Mounting of Crane Arms

Quick, Simple Leveling System

Accommodates Lenny Arms for Manned or Remote Applications

Removable Center Post

Tool Box for Storage

Patented Screw Jack System for Easy Leveling of Chassis

Can be used on 880mm Track

Adjustable and Removable Track Wheels

A Variety of Tires to Accommodate Most Terrain

Special Outriggers for Stabilization of Base Available

Caster Wheels Available for Transportation in Smallest Width Configuration

Quick Pin Transmission Provides Crab and Conventional Steering

CS Base Dissassembles for Easy Transportation

Many Accessories Available
