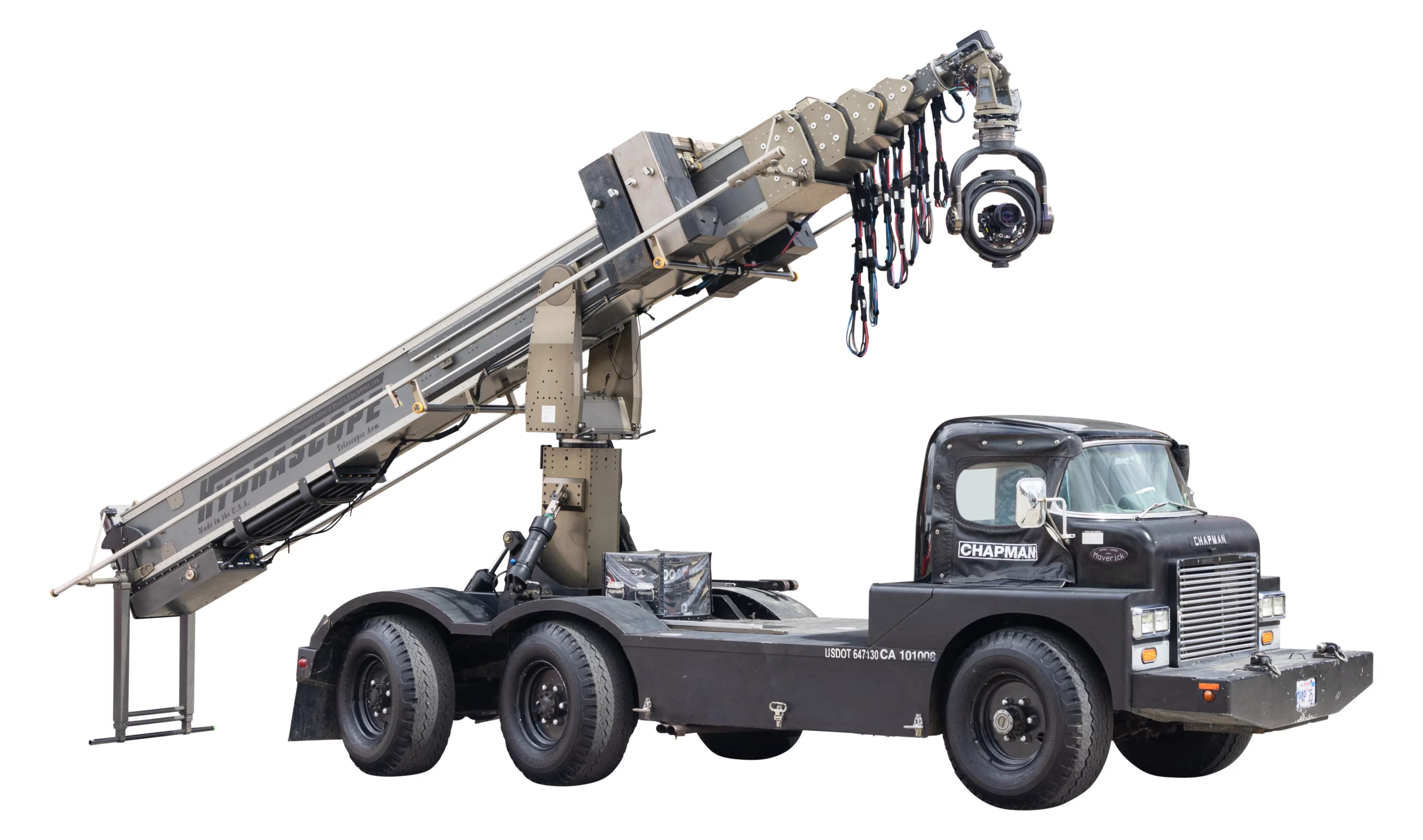

Ultra Maverick
Remote Controlled Power Steering for Rear Wheels 6-Wheel Steering Defies Any Terrain Heavy Duty Braking Applied to All 6 Wheels Battery Powered Hydraulic Pan Brake Partial Crabbing Ability Gasoline Engine and Electric Motor Capabilities Swings 360 Degrees Hydraulic Leveling in Less Than 5 Seconds Many Accessories Available Qualified Driver Dispatched
Specifications
Features
Downloads (Coming Soon)
Center Post Height
6 ft. 10 in. / 2 m
Maximum Center Post Height
11 ft / 3.3 m
Center Post Maximum Travel
4 ft. 8 in. / 1.2 m
Maximum Degree of Center Post Angle (Backward Lean)
32 Degrees
Maximum Degree of Center Post Angle (Cab Lean)
22 Degrees
Maximum Degree of Center Post Angle (Left Lean)
15 Degrees
Maximum Degree of Center Post Angle (Right Lean)
15 Degrees
Minimum Height Clearance
6 ft. 10 in. / 2 m
Weight (Base Only)
16,300 lb / 7,394 kg
Weight (Base Only)
16,300 lb / 7,394 kg
Low Boy Trailer (48 ft.) Maximum Payload
70,000 lb / 31,751 kg
Carrying Weight
280 lb / 127 kg
Carrying Weight
280 lb / 127 kg
Carrying Weight
280 lb / 127 kg
Carrying Weight
280 lb / 127 kg
*Payload includes All Items (i.e. Man, Camera, Platform, Turret, Crane Arm, etc.) on Base Mount
Remote Controlled Power Steering for Rear Wheels
6-Wheel Steering Defies Any Terrain
Heavy Duty Braking Applied to All 6 Wheels
Battery Powered Hydraulic Pan Brake
Partial Crabbing Ability
Gasoline Engine and Electric Motor Capabilities
Swings 360 Degrees
Hydraulic Leveling in Less Than 5 Seconds
Many Accessories Available
Qualified Driver Dispatched with Every Order
Compatible with All Chapman Lenny Arms, Hydrascopes and Technocranes
Cruises at 50 mph
