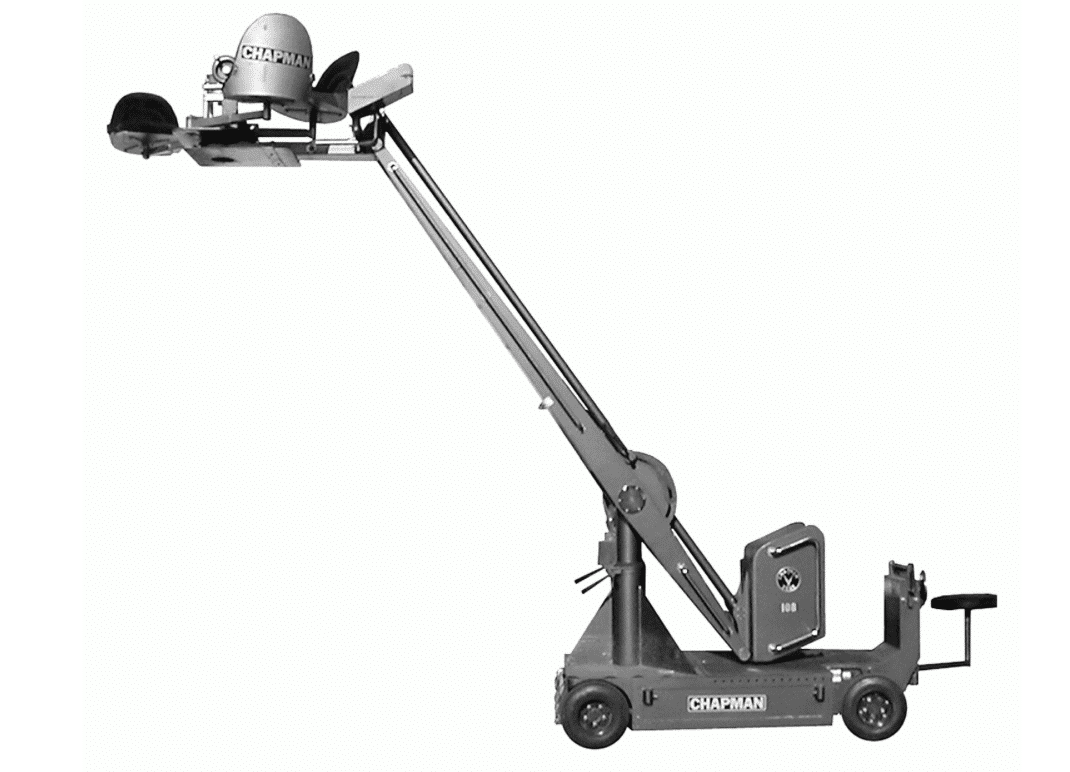

Zeus

Name: Zeus
SKU: 3710

Operates on 8 Tires (6 Front, 2 Rear), Friction Brakes for Pan and Tilt Movement, Large High Capacity Batteries Allow 24 Hours of Use on a Full Charge, Charger Tapers off as Batteries Are Energized, Battery Charge Pre- Set for either 110v or 220v, Rocker Suspension, Turn Around Front Wheels, All Steel Construction, Solid or Pneumatic Tires Available, 360 Degree Arm Swing, Hydraulic Chassis and Momentary Parking Brake, Selection of Turrets, Risers and Extensions, Specialty Track Available Upon Request, Electric Powered for Smooth, Silent Operation in Forward and Reverse Modes, 20′ Flatbed Trailer

Product Overview and Key Features Specifications Downloads

Choose a tab

Operates on 8 Tires (6 Front, 2 Rear)

Friction Brakes for Pan and Tilt Movement

Large High Capacity Batteries Allow 24 Hours of Use on a Full Charge

Charger Tapers off as Batteries Are Energized

Battery Charge Pre- Set for either 110v or 220v

Rocker Suspension

Turn Around Front Wheels

All Steel Construction

Solid or Pneumatic Tires Available

360 Degree Arm Swing

Hydraulic Chassis and Momentary Parking Brake

Selection of Turrets, Risers and Extensions

Specialty Track Available Upon Request

Electric Powered for Smooth, Silent Operation in Forward and Reverse Modes

20' Flatbed Trailer

Lens Height (with 12 inches Riser)

16 ft. 2 in. / 4.93 m

Base Mount Height

12 ft. 8 in. / 3.86 m

Reach Beyond Chassis to Lens

11 ft. 6 in. / 3.51 m

Maximum Payload

1,300 lb / 590 kg

Vertical Travel of Boom Above Ground

12 ft. 2 in. / 3.71 m

Vertical Travel of Boom Below Ground

3 ft / 91 cm

Chassis Width

4 ft / 1.22 m

Outside Dimensions with Pneumatic Tires

4 ft. 0.75 in. / 1.22 m

Chassis Length

7 ft. 10.4 in. / 2.39 m

Minimum Chassis Height

5 ft. 9.25 in. / 1.75 m

Fully Extended Boom Length

18 ft. 6 in. / 5.64 m

Maximum Length of Boom and Chassis

19 ft. 4 in. / 5.89 m

Clearance Height for Man & Camera with Arm Level

8 ft. 6 in. / 2.59 m

Crane Weight with Turret

4,800 lb / 2,177 kg

Arm Balancing Ratio

2.25 : 1

Tread

4 ft. 3.9 in. / 1.09 m

Wheel Base

5 ft. 7.25 in. / 1.71 m

Minimum Height Clearance with Arm Level

55 in / 1.4 m

Maximum Speed on Level Ground Drop Down (to Crane Mount)

11.2 ft./sec. / 2.8 m/sec.

Outside Turn Radius

8 ft / 2.44 m

Normal Operating Weight Less Payload

6,150 lb / 2,790 kg
